Malaysia's Awning Expert Since 2017.

Glass AwningACP AwningPU Metal AwningAluminium PergolaRetractable AwningCar Porch Awning

Why Choose Us

Eave DesignsContractorsBudget
Prices published✓✕✕
No hidden fees✓✕✕
Fixed quote after measurement✓✕✕
Installed in as fast as 3 hours✓✕✕
5-year written warranty✓✕✕

What we build

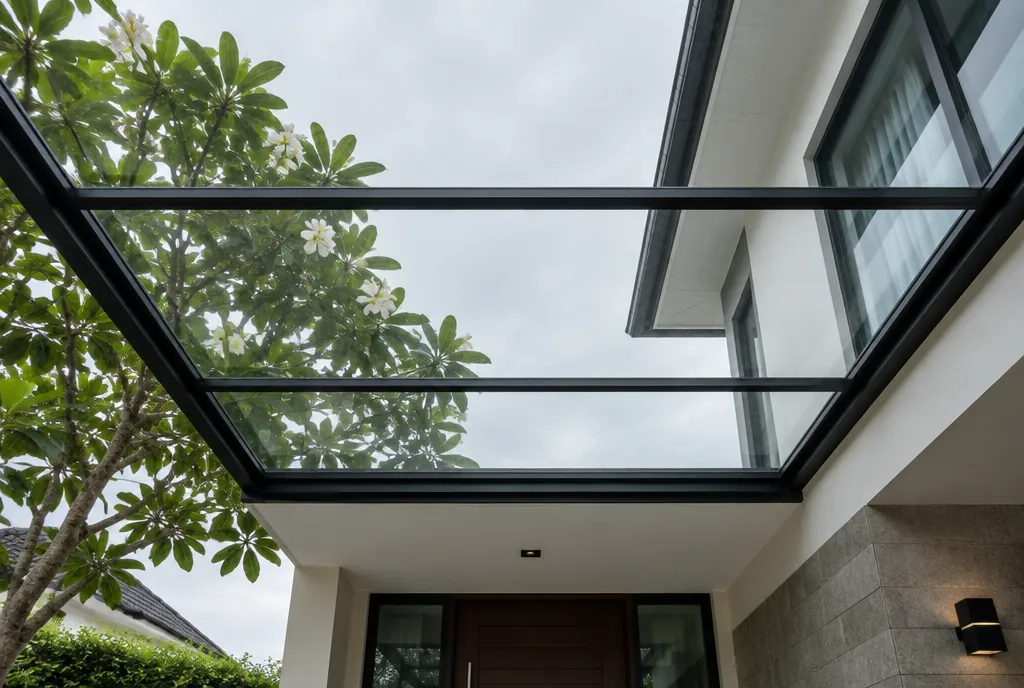

Glass awning in Kuala Lumpur by Eave Designs

Glass awning

Laminated glass, slim aluminium frame, concealed drainage. Daylight under the roof.

From RM 78 / sq ft

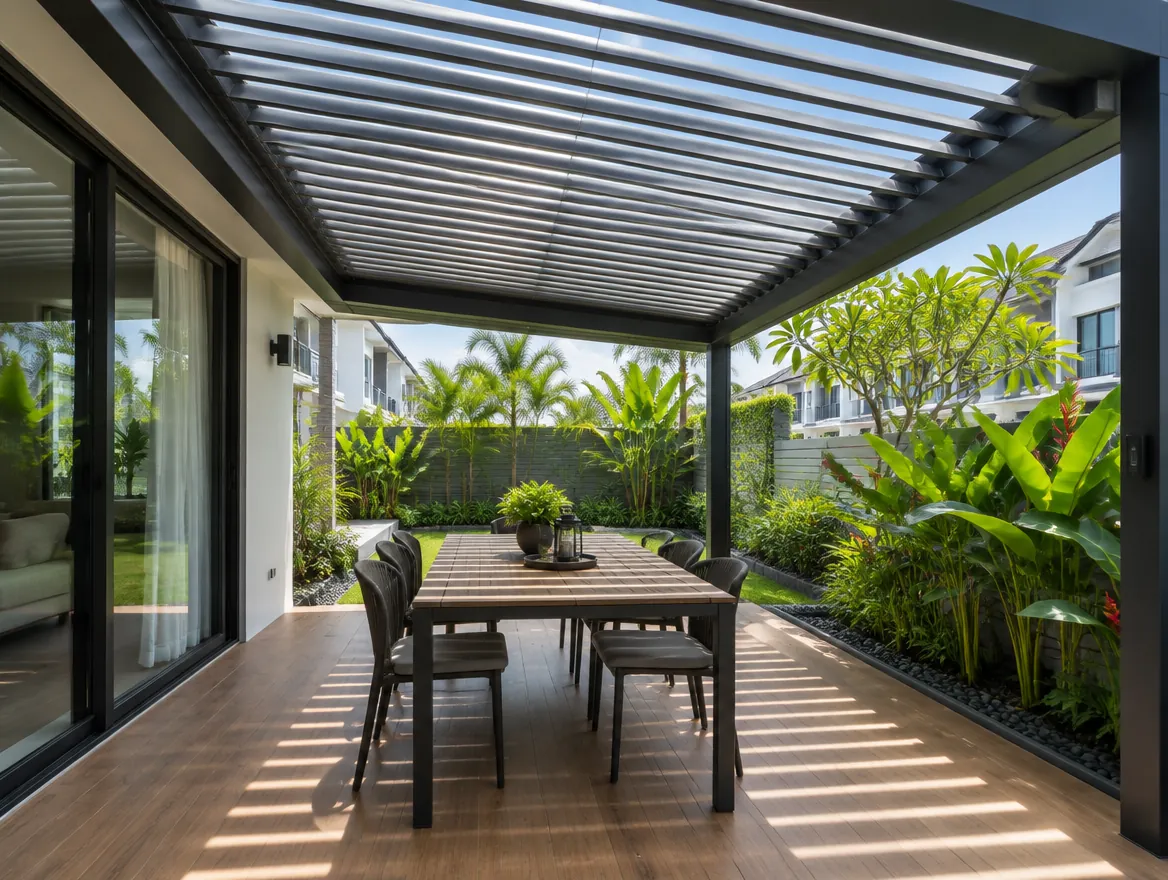

Aluminium louvred pergola in Kuala Lumpur by Eave Designs

Aluminium louvred pergola

Motorised blades open for air, close for rain. Rain sensor and lighting.

From RM 130 / sq ft

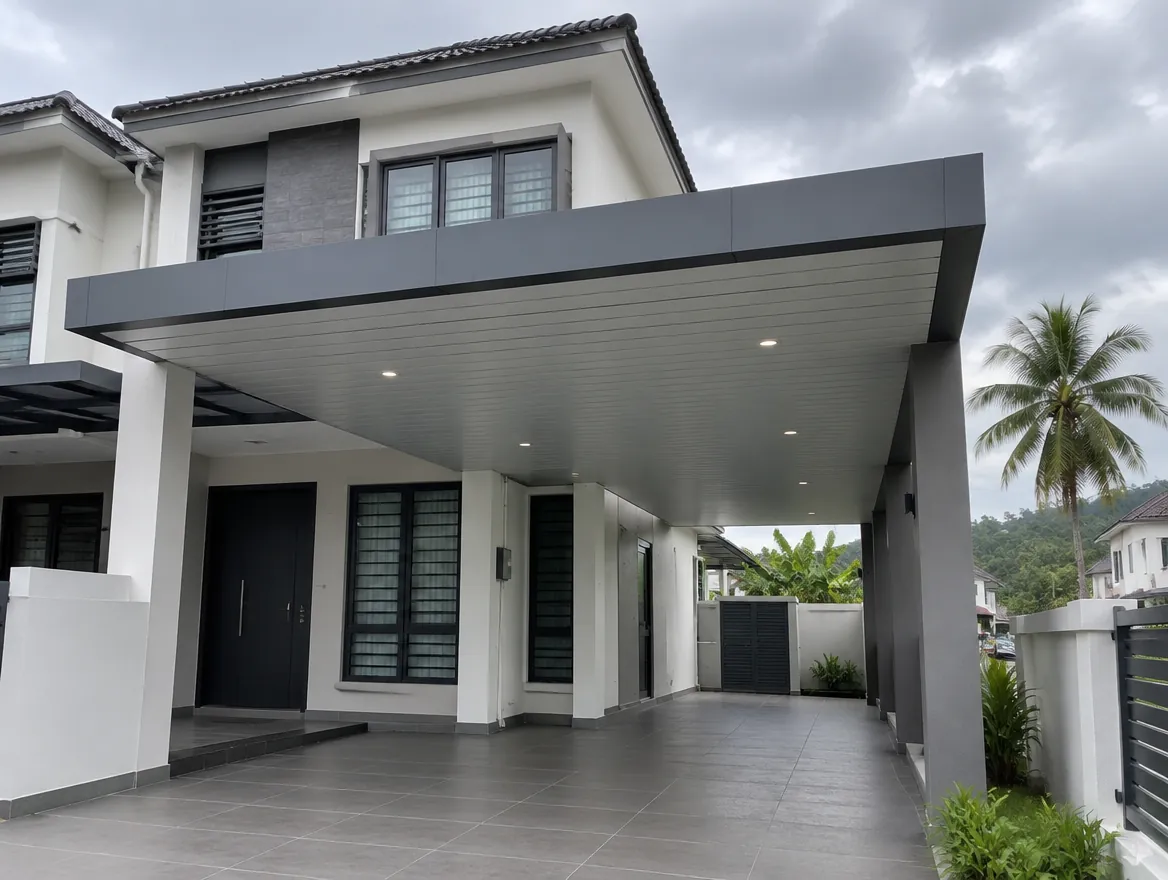

ACP awning in Kuala Lumpur by Eave Designs

ACP awning

4 mm PVDF panel, strip ceiling, flat modern profile for the front of the house.

From RM 52 / sq ft

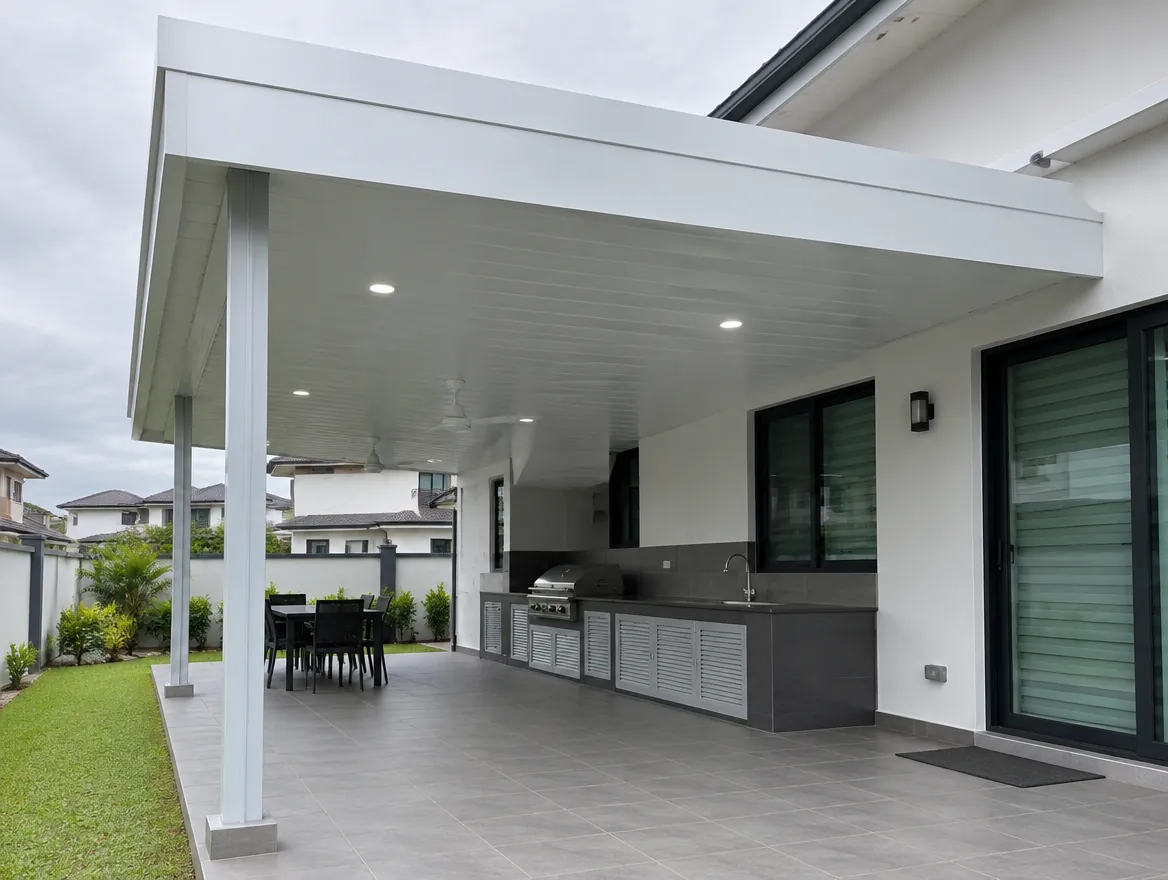

PU metal awning in Kuala Lumpur by Eave Designs

PU metal awning

Insulated panel. Coolest and quietest roof for a kitchen or back porch.

From RM 45 / sq ft

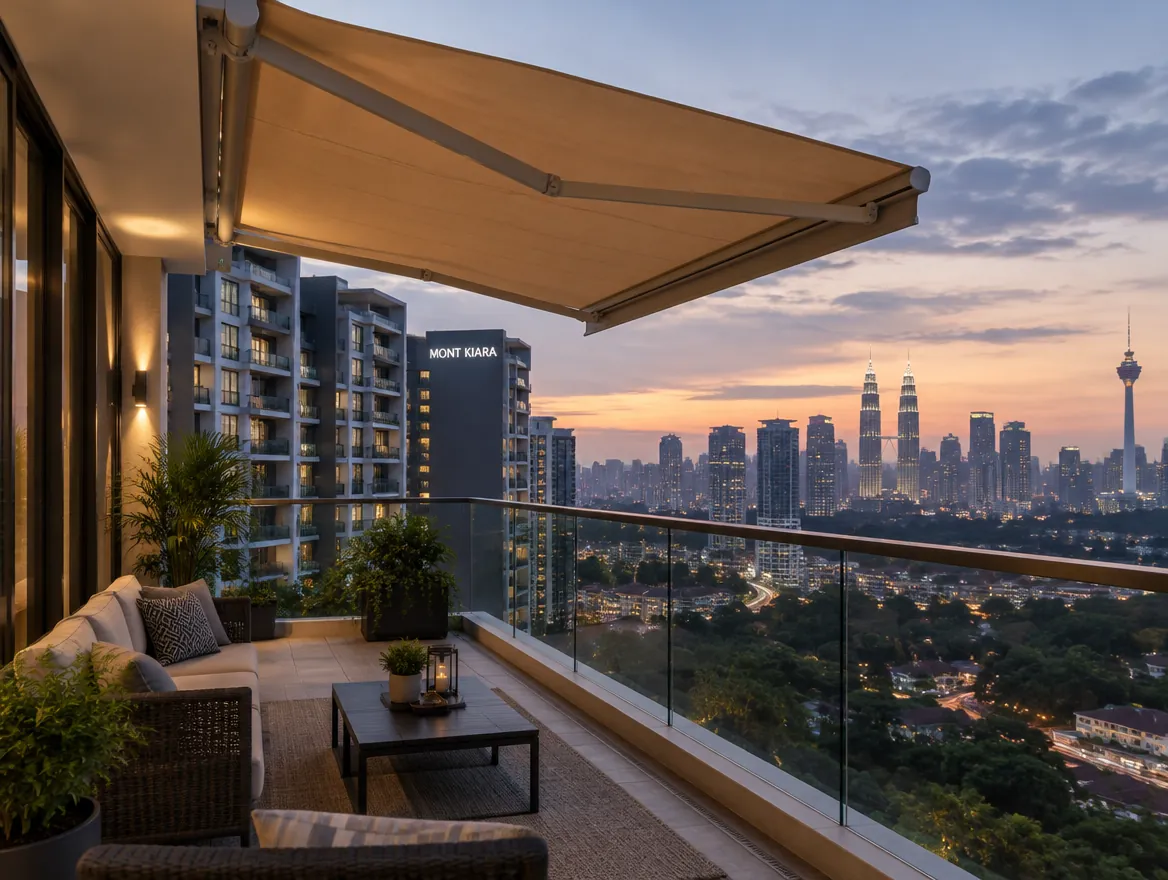

Retractable awning in Kuala Lumpur by Eave Designs

Retractable awning

Full-cassette folding-arm awnings for balconies, patios and shopfronts.

RM 6,000 – 15,000

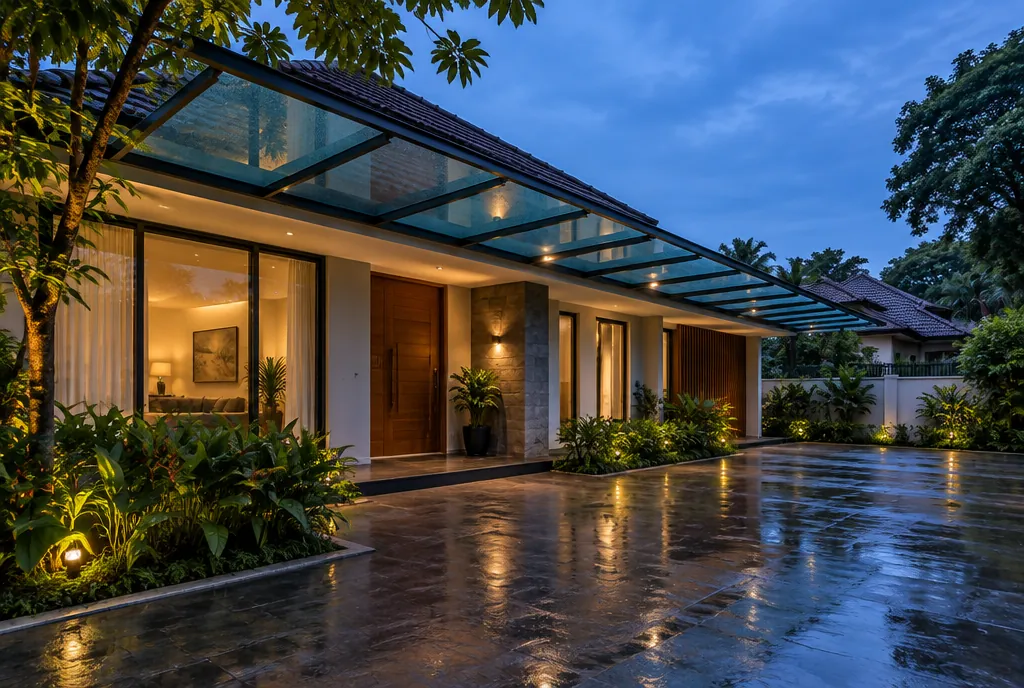

Car porch awning in Kuala Lumpur by Eave Designs

Car porch awning

Glass, ACP or PU metal over the front porch, with the council drawing included.

RM 10,500 – 24,000

We do not install polycarbonate or zinc. Both are cheaper on day one and look it by year three.

How a job runs

  1. Hand holding a phone photographing an empty car porch to send to Eave on WhatsAppSend a photo
    One photo of the area on WhatsApp, with a rough size. We reply with a quotation bracket for each material that suits it.

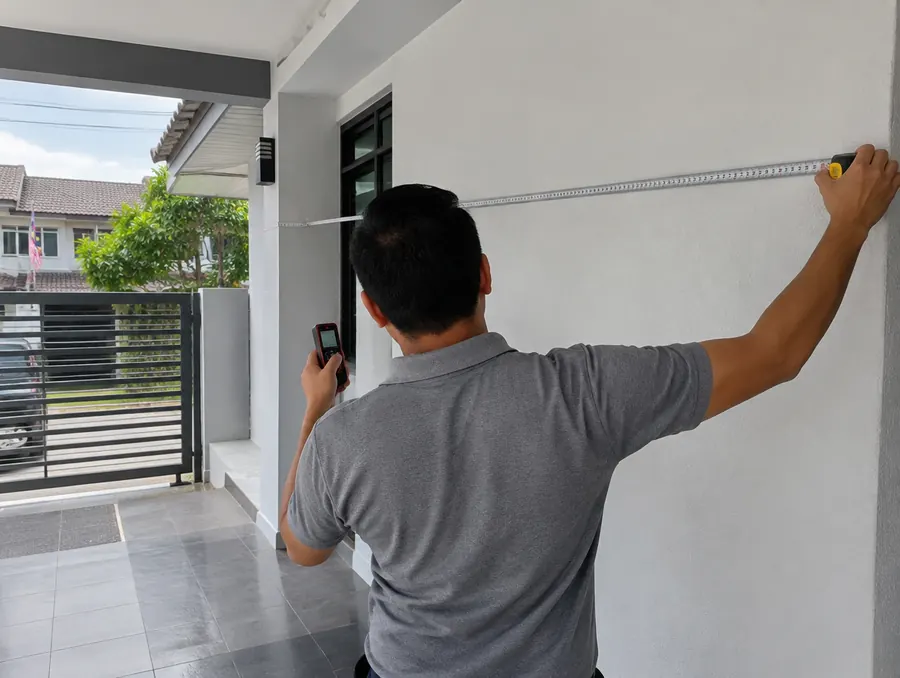

  2. Technician measuring a car porch wall with a tape and laser meterFree site measurement
    We measure, check the wall, drainage and autogate clearance, and talk through options.

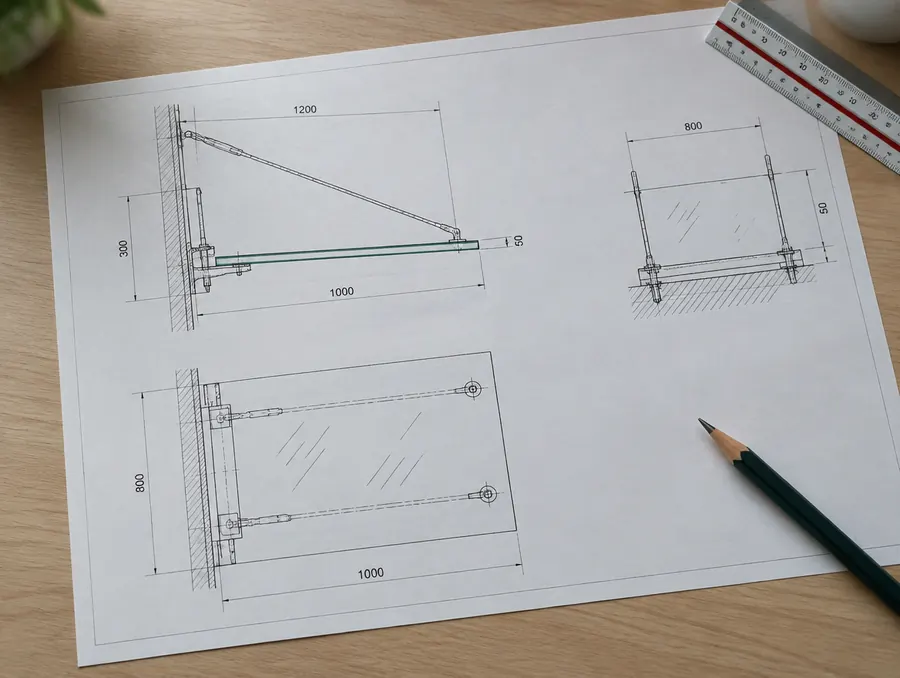

  3. Dimensioned drawing of a glass awning cross-section on a deskDrawing and fixed quote
    A dimensioned drawing and an itemised quote in 3 – 5 working days. Council drawing included where needed.

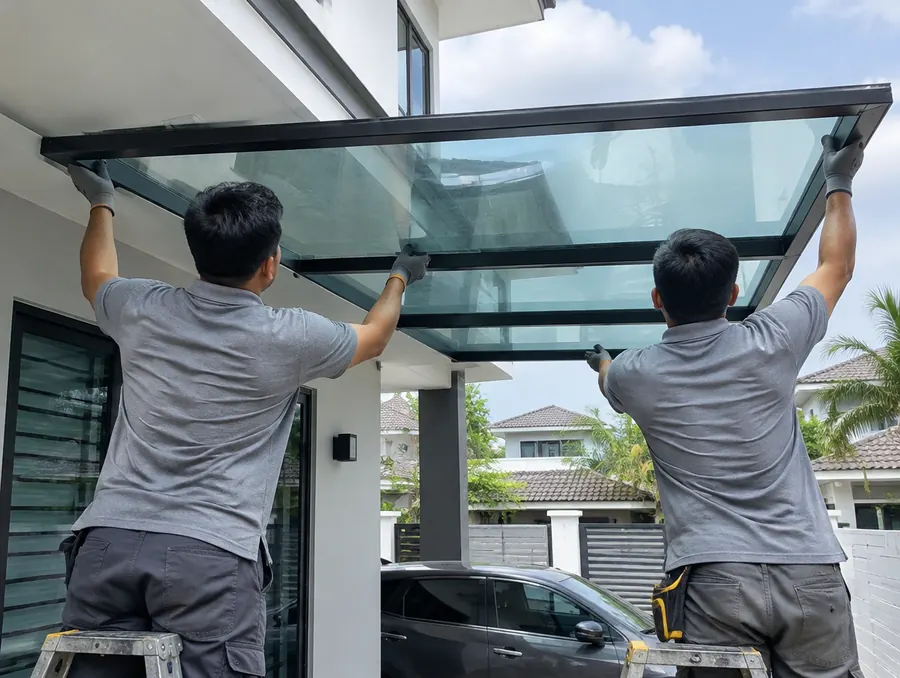

  4. Installers lifting a laminated glass panel onto an aluminium awning frameFabrication and install
    Frames built off site, so installation takes as fast as 3 hours. 5-year structure and leakage warranty.

The parts of an awning

Every quote we send names these parts. Knowing them is how you compare two quotes properly.

Cantilevered glass awning over a car porch with its parts numbered12345678
  1. Roof panel — laminated glass, 4 mm PVDF ACP or PU metal. The quote must state thickness and coating
  2. Primary beam — the aluminium or galvanised steel member carrying the roof, fixed to the wall or to posts
  3. Wall bracket and flashing — bolted into the wall with chemical anchors, flashing chased into the wall then sealed
  4. Fall — at least 5° slope away from the house so water runs to the front
  5. Concealed gutter — a box gutter inside the front fascia, so there is no exposed half-round pipe
  6. Posts with hidden downpipe — at least two slim posts at the front corners, downpipe running inside one of them to the drain
  7. Underside — on glass it is the glass itself; under an ACP roof an aluminium strip ceiling hides the frame and gives a finished soffit
  8. Lighting point — downlights or a fan point wired before the ceiling closes

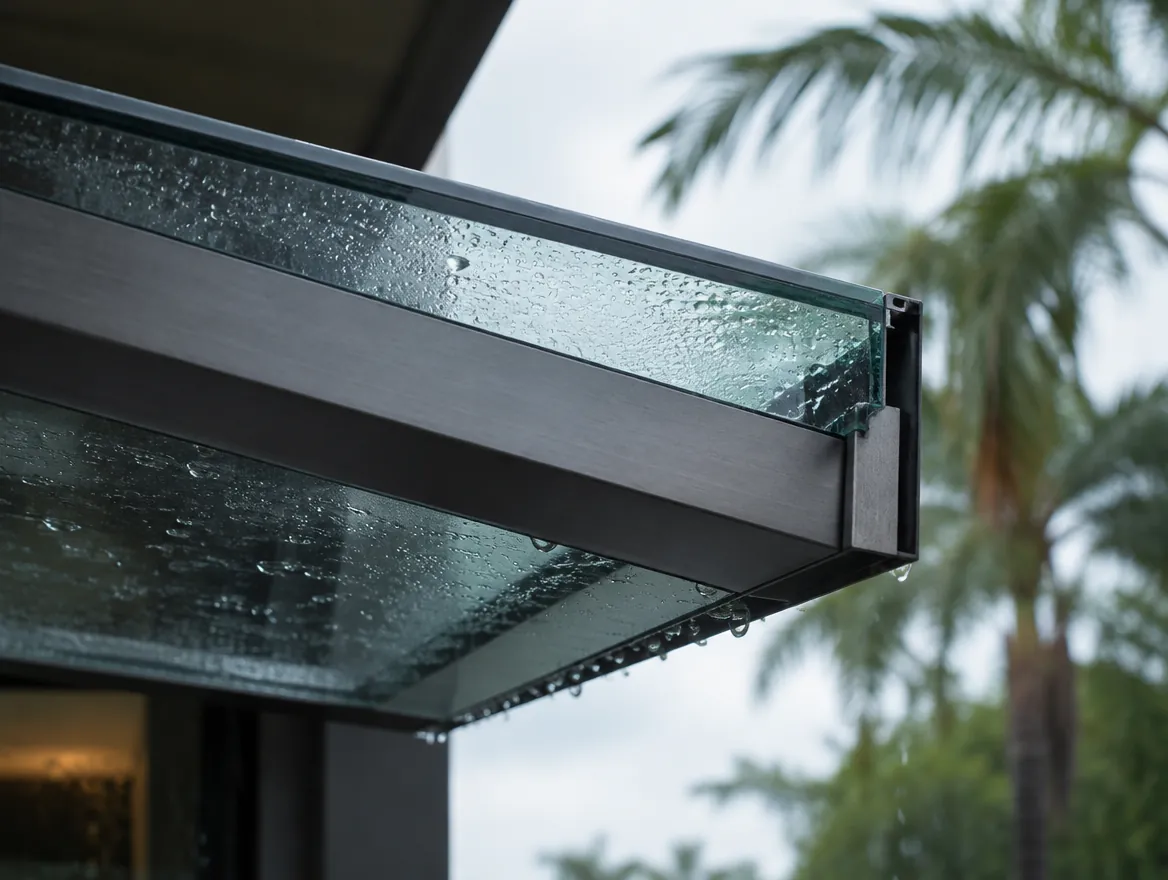

Laminated glass awning edge with concealed drainage channel in tropical rain

The details that decide whether an awning leaks

  • Fall of at least 5° set in the drawing, not eyeballed on site
  • Concealed box gutter in the front beam, downpipe inside the post
  • Flashing chased into the wall, then sealed. Silicone alone fails within two monsoons
  • Stainless fixings on glass, hot-dip galvanised steel or aluminium frames
  • Laminated glass over anywhere people stand, so a crack never becomes a shower of pieces

Types of awning in Malaysia, compared

Questions people ask

What does a premium awning cost in Kuala Lumpur?

Glass from RM 78 per sq ft, motorised louvred pergola from RM 130 per sq ft, ACP from RM 52 per sq ft and PU metal from RM 45 per sq ft, installed. A standard 200 sq ft car porch is RM 10,500 – 24,000 depending on material. See the full price guide.

Which areas does Eave cover?

Kuala Lumpur and Selangor: Damansara, Mont Kiara, Bangsar, TTDI, Ampang, Cheras, Petaling Jaya, Subang Jaya, Puchong, Shah Alam and Klang. Site visits are free.

Does Eave install polycarbonate or zinc awnings?

No. We only install materials that still look right in ten years: laminated glass, 4 mm PVDF ACP, PU metal, aluminium louvres and cassette retractable awnings.

Who is behind Eave?

Eave Designs is the outdoor structures division of V Creatives Enterprise, a Kuala Lumpur company that fabricates steel and aluminium structures for homes and brand events across the Klang Valley.

Start with a photo

Send a photo of the area and its rough size. We reply with a quotation bracket, then a free site measurement.
